Soler & Palau KIT-TD100 Inline Ventilation Kit - 4"
About This Bathroom Fan
|MFG:||Soler & Palau|
|Amp Draw:||0.2 Amps|
Soler & Palau KIT-TD100 Inline Ventilation Kit - 57 CFM - 4"

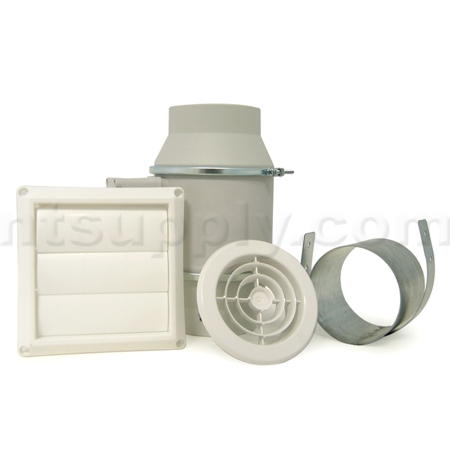

This handy kit includes the components you need to get your ventilation project started! Kit includes:
(1) TD100 Energystar rated exhaust fan
(1) Plastic round grill - PG-100 - 4-3/4" white grille with 4" mounting collar with nailing strip
(1) Exterior louvered shutter for wall exhaust - PER-W - 6" white square louver with 4" duct collar (duct not included)
All you need to complete the job is ductwork, and a switch. If venting in non-insulated attic space or in a cold climate, insulated flexible duct work is recommended to avoid condensation issues.
Get the "best of both worlds" with S&P's TD Series inline fans! Combine the low noise characteristics of an axial fan and centrifugal fan performance at a value price!
The Soler & Palau TD series of inline duct fans have been specially designed to maximize the airflow performance with minimal noise levels within the smallest and most compact of housing sizes. This makes the TD series the ultimate solution for small to medium size ventilation installations which require a high airflow to pressure ration and occupy only the minimum space possible. Example: false ceiling voids, cabinets and many other limited space environments.
All models are include a "removable body" feature that enables the motor-impellor assembly to be completely removed or replaced without the need to interfere with attached ducting. All models incorporate a powerful mixed flow impeller and internal air vanes located at the discharge end of the fan housing. This impeller and guide vane combination provides smooth laminar air flow which in term minimizes turbulence and noise, and generates and excellent air flow to pressure performance ratio.
All TD models include speed controllable, 2-speed motor with permanently lubricated ball bearings.
Models TD 100, 100x, 125, 150 & 200x are double insulated and are not provided with external ground wireThe TD series fans are perfect for:
- Bathroom exhaust
- Garage ventilation
- Basement ventilation
- Domestic range hood exhaust
- Multi-room ventilation
Duct Diameter - 4"
Volts - 120
CFM Low Speed - 97 at 0" WG / 51 at .25" WG
CFM High Speed - 101 at 0" WG / 57 at .25" WG
Max Static Pressure - .4" WG
Weight - 2 lbs
Nominal RPMs Low Speed - 2431
Nominal RPMs High Speed - 2516
Max Watts on Hight Speed - 26 (23 on Low Speed)
Housing material - polypropelene
Fan blade material - ABS
Max Operating Temp - 104 Degrees
Fan sound levels are measured in sones. At this time there are no sone level test standards available through HVI due to the fact that remote mounted fan noise levels are in proportion to the following: type of duct, length of duct, fan distance from the intake source and other miscellaneous factors. However, it is generally accepted that remote mounted venting is usually quieter than standard (in room) venting.
X = 5-15/16"
