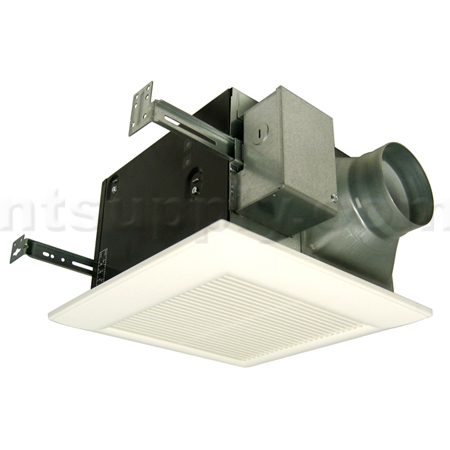

Panasonic WhisperCeiling Bathroom Fan FV-11VQ5
About This Bathroom Fan
| MFG: | Panasonic |
| MFG#: | FV-11VQ5 |
| Our#: | 175903 |
| CFM: | 110 CFM |
| Duct Diameter: | 4" |
| Sones (Loudness): | <0.3 sones |
| Grille Dimensions: | 13" Square |
| Mounting Opening: | 10-1/4" Square |
| Amp Draw: | 0.12 Amps |
| 1 Function: | Fan |
REPLACES MODEL FV-11VQ3
Panasonic WhisperCeiling Bathroom Fan FV-11VQ5 - The newest generation of fan from Panasonic. A new generation of energy efficiency, quiet operation and unparalleled performance.
Any manufacturer can achieve low sone levels at .1" w.g. - the amount of static pressure with 10 feet of duct and a wall cap. But today's houses have longer and more complicated duct runs. Since .1" w.g. is an unrealistic amount of static pressure when installed, ASHRAE, ENERGY STARŽ, LEED for Homes, and HVI have set the industry standard for performance measurement at .25" w.g.. Panasonic leads the way with incomparable sone levels at both .1" and .25" w.g.
Air Movement: 110 CFM
Duct Diameter (inches): 4"
Sound: <0.3 sones
FEATURES:
- 3-Year warranty
- Built-in damper to prevent backdraft
- ASHRAE 62.2, LEED, and CA Title 24 compliant
- UL listed for tub/shower enclosure when used with a GFCI branch circuit
- Meets Washington State Ventilation and Indoor Air Quality Code
- Thermal fuse protection
- ENERGY STAR Rated
So Quiet You Might Not Know it's On
This WhisperCeilingT model features a totally enclosed condenser motor and a large, double suction blower wheel to quietly move air. A small wheel turning very fast will create more noise than a large wheel turning more slowly for a given airflow. Our fan uses a wide blower wheel that moves a large amount of air at reduced RPMs. The blower wheel is also designed to draw air in from both sides, which helps keep the noise down, as there is more area for the air to enter the wheel. In fact, it is quiet enough that you might not even know it's on.
Continuous, Trouble-free Operation for Many Years
This fan is designed to give you continuous, trouble-free operation for many years thanks in part to its high-quality components and permanently lubricated motors which wear at a slower pace. Also, since heat is always detrimental to motor life (the cooler the environment, the longer the motor will last), we designed the electrical configuration of this model's condenser motor to allow it to operate at lower temperatures, increasing the life of the motor and bearings. And, the fan housing is made of heavy-gauge zinc galvanized steel and painted to protect it from rust.
User-Friendly Installation
Detachable adaptors, firmly secured duct ends, adjustable mounting brackets (up to 26"), fan/motor units that detach easily from the housing and uncomplicated wiring all lend themselves to user-friendly installation. This model also features a double-hanger bar system for ideal positioning.
Energy StarŽ Qualified for Energy Savings
Energy Star qualified products feature super-quiet operation and high CFM-to-Watt efficiency. The Energy Star program was created to help consumers identify products that can save them money and protect the environment by saving energy. As an Energy Star partner, all our fans are Energy Star qualified and labeled accordingly.
Tired of Cold Air Coming Through Your Ventilation Fan?
This Panasonic fan has a built-in damper to prevent backdraft, which helps to prevent outside air from coming through the fan. Also, thanks to our efficient, cool running motors and fluorescent bulbs, it does not create excessive heat-a common problem with recessed lighting fixtures and some competitors' fan/light combinations. Loose fill or batt insulation can be placed directly over the fan housing to prevent heat from escaping.
BathroomFanExperts.com Price:
$184.50
Recommended Switches & Controls
|
Deluxe Vacancy / Occupancy Sensor Switch - White
|
$62.50
|
|
Fantech Electronic Push Button Timer (FD 60EM)
|
$49.60
|
Recommended Ducting Accessories
|
4" X 25' Insulated Flex Duct
|
$24.95
|
|
Broan Model RVK1A Roof Ducting Kit for 4" Duct
|
$46.95
|
|
Broan Model WVK2A Wall Ducting Kit for 4" Duct
|
$21.95
|
|
Round Undereve / Soffit Bath Fan Vent
|
$12.50
|
More Optional Accessories
REVIEW SNAPSHOT®
by PowerReviewsPros
- Quiet (55)
- Good power output (44)
- Easy to install (33)
- Sleek design (23)
Cons
Best Uses
- Smaller rooms / apartments (14)
- Bathroom (10)
- Large rooms (9)
- Basements (3)
- Kitchen (3)
- Reviewer Profile:
- Homeowner (49), Avid do-it-yourselfer (17), Professional (6)
Reviewed by 57 customers
Sort by
Displaying reviews 1-10
Previous | Next »
Pros
- Easy To Install
- Powerful
- Quiet
- Sleek Design
Cons
Best Uses
- Bathroom
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
Install is pretty easy, very helpful to have two people. One person mainly just to hold things and place and throw tools up to the other in the attic. I made the mistake of tackling this solo, so probably took a bit longer than it should.
As for the performance, it's amazing. Very quiet, and moves a ton of air. Our windows and mirrors no longer fog up, even after my wife's extremely long showers.
I'd give it 5 stars, but I've had some intermittent issues.. Not sure if something was stuck, but it was making a funny noise and then the fan would stop. Once it got going again it would be fine. It hasn't done it now for a couple of weeks so hoping it was just a fluke. If it happens again, I'll be contacting support for help.
Pros
- Easy To Install
- Powerful
- Quiet
Cons
Best Uses
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
We installed two of these fans, and I am really happy with the performance! Installation was straightforward, they install between any size rafter, even 2x4. No fog at all on the mirror now!
I used the insulated flexible 4" duct, and I highly recommend that. A 4" rigid duct is too large as the outlet is actually 3 7/8". The flexible fit tight.
It is best to use a rooftop damper. The damper at the fan doesnt seal tight, which is needed to dry out any moisture left in the hose. If you had two tight fitting dampers, with the fan off the hose would be sealed shut and never dry if wet.
I highly recommend these fans!
Pros
- Easy To Install
- Powerful
- Quiet
- Sleek Design
Cons
Best Uses
- Basements
- Kitchens
- Large Rooms
- Smaller Rooms
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
I use it in my bathrooms and it is very quiet and looks good.
Pros
- Quiet
Cons
Best Uses
- Bathroom
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
I purchased two of these units to replace inadequate fans in two adjacent bedrooms. I chose them primarily because of their low noise rating and higher air exchange rate. I was careful to follow the manufacturer's recommendations for type and size of ductwork, angles and direction of ducts, and proper sealing, and this made the installation challenging because existing ductwork was not adequate. The fan efficiency depends on the ductwork, however, so don't skimp there. Walking by the bathroom with the door open, we cannot detect if the fan is off or on. Inside the bathroom we can hear it, but barely. In a 6x10 foot room we can have four adults shower in a row with no vapor accumulation on the mirror. I highly recommend this fan.
Pros
- Quiet
Cons
Best Uses
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
Can't hear it run and was easy to install
Pros
- Easy To Install
- No negative comments
- Powerful
- Quiet
Cons
Best Uses
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
The item was on back order but then it came in a few days ahead of the back order date. It was worth the wait.
Pros
- Easy To Install
- Powerful
- Quiet
Cons
- Joist Hanger improvement
Best Uses
- Large Rooms
- Smaller Rooms
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
It was easy to install. The product didn't disappoint, and the only con I have is the joist bracket's connection to the unit. I feel it would be better if the connectors were on both ends (same side) of the unit so the hangers were more sturdy.
Pros
- Easy To Install
- Powerful
- Quiet
- Sleek Design
Cons
Best Uses
- Large Rooms
- Smaller Rooms
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
I use them any place you want to git rid of old stale air and yet you dont want to hear it running. good for laundry rooms and basements
Pros
- Easy To Install
- Powerful
- Quiet
Cons
Best Uses
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
I vented it out the soffit, amazing all the air it moves. I can hear the air blowing out of the vent. I was very happy with this product
Pros
- Easy To Install
- Powerful
- Quiet
- Sleek Design
Cons
Best Uses
Comments about Panasonic WhisperCeiling Bathroom Fan FV-11VQ5:
I installed the fan in the bathroom to remover moisture. I was able to install the fan without entering the attic. That was great because access to my attic was limited. The fan is quiet and performs very well. I couldn't find any negative things to comment on. I love the fan so much I bought a second fan for the toilet area and will soon purchase another for the guest bathroom.
