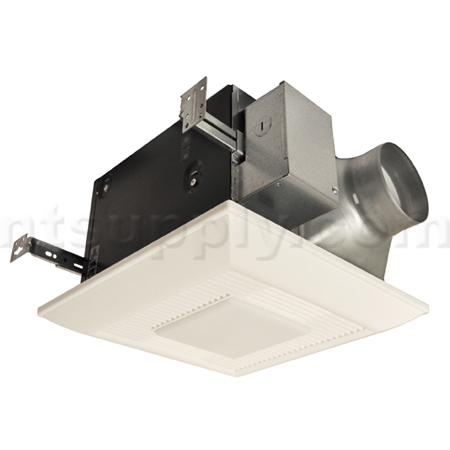

Panasonic WhisperGreen-Lite Bathroom Fan with DC Motor / Lights - FV-08VKL3

Panasonic WhisperGreen-Lite Bathroom Fan with DC Motor / Lights - FV-08VKL3 (replaces FV-08VKL1)

80 CFM: 7.4 Watts
11.2 CFM/Watt: 0.3 sones
6 Year Warranty on DC Motor

Duct Diameter (inches): 4"
Mounting Opening (inches sq.): 10 7/8"
Grille Size (inches sq.): 13"

Lights - 32 Watts 2 plus 4 watt night-lite

Constant CFM Performance
This WhisperGreenT model features built-in intelligence called SmartFlowT Optimum CFM Technology. This unique "electronic-brain" lets the fan do what was once thought to be impossible: perform at a constant CFM regardless of elbows and other factors that might hinder performance. Basically, when a WhisperGreenT fan faces static pressure, its speed is automatically increased to ensure that the desired CFM is actually achieved. This allows the fan to perform as rated and makes for easier installation because the installer no longer has to worry as much about compromising the fan's performance.

DC Brushless Motor
Panasonic's DC brushless motor provides unparalleled energy efficiency with its magnetic rotor and print circuit board. The magnetic rotor prevents energy loss while the print circuit board incorporates a unique IC chip which monitors and directs the RPM of the fan blade. The combination of these two unique features allows the DC motor to have higher energy efficiency than an AC motor.

Quiet Motor Means Quiet Operation
Panasonic is the first ventilation fan manufacturer to incorporate a DC motor in residential mechanical ventilation fans. The WhisperGreenT series incorporates a totally enclosed DC motor designed for extremely quiet, energy-efficient operation. The permanently lubricated motor is also engineered for trouble-free, continuous run for several years.

Bright Ideas
Electronic ballast technology  - powerful 32-watt compact, flicker-free fluorescent lamp (included) assures strong light output along with super energy efficiency. And a 4-watt night-light is convenient for all, especially young families.

ENERGY STARŽ-Qualified for Energy Savings
ENERGY STARŽ-qualified products feature super-quiet operation and high CFM-to-Watt efficiency. The ENERGY STAR program was created to help consumers identify products that can save them money and protect the environment by saving energy. As an ENERGY STAR partner, all of our fans are ENERGY STAR-qualified and labeled accordingly.

FEATURES:
SmartFlowT system for constant CFM output
Super energy-efficient DC motor
Ultra-quiet operation
ENERGY STARŽ-qualified
Totally enclosed motor for long life
Easy installation (hanger bar system)
Rustproof paint treatment on galvanized housing
Built-in damper to prevent backdraft
UL Listed for tub/shower enclosure when used with a GFCI branch circuit wire
Thermal Fuse Protection

SPECIFICATIONS:
Duct Diameter (inches)   4
Air Volume (CFM)
80 at .10" statistic pressure
79 at .25" statistic pressure
Noise (sones) <0.3 at .10" statistic pressure
Power Consumption (Watts)
7.4 at .10" statistic pressure
12.4 at .25" statistic pressure
Energy Efficiency (CFMs/Watt)
11.2 at .10" statistic pressure
6.6 at .25" statistic pressure
Speed
733 at .10" statistic pressure
987 at .25" statistic pressure
Current
.09 at .10" statistic pressure
.17 at .25" statistic pressure
Power Rating (V/Hz)  120/60
Motor Type  DC
Type of Motor Bearing  Ball
Thermal Fuse Protection  Yes
Blower Wheel Type  Sirocco
Energy Star Qualified  Yes
Mounting Opening (inches sq.)  10-7/8
Grill Size (inches sq.)  13
High/Low Delay Timer  No
CustomVent Variable Speed Control  No
SmartFlow Optimum CFM Technology  Yes
UL Tub/Shower Enclosure  Yes
Lamp Watts    32
Color Rendering Index  84
Color Temp (kelvin)  3500
Rated Life (hrs)  10,000
Lamp Model #  FHT32E35
Night Light Watts  4
Washington State VIAQ Code  Yes
California Title 24 Compliant  Yes
Mfg in ISO 9001 Certified Facility  Yes
