Fantech PB190 Premium Bath Fan Kit - 190 CFM
About This Bathroom Fan
| MFG: | Fantech |
| MFG#: | PB190 |
| Our#: | 112068 |
| CFM: | 190 CFM |
| Duct Diameter: | 6" |
| Grille Dimensions: | 7" Diameter |
| Mounting Opening: | 6" Diameter |
| Amp Draw: | 0.67 Amps |
| 1 Function: | Fan |
Do bathrooms fans have to sound like a wind tunnel to get the job done? The truth is, noisy bathroom exhaust fans lose much of their effectiveness, simply because people don't want to use them. So, odor, moisture, mold and mildew build up. Even the most elegant bathrooms become unattractive, and may suffer long-term damage.
Fantech bathroom exhaust fans are designed to operate quietly and effectively, so people actually use them. Yet their affordability means they're right for every bathroom-from simple to luxurious.
Requested by clients.
Specified by designers.
You'll find Fantech bathroom exhaust fans specified on the blueprints of top architects and designers.
Why? Simple. They're quiet, efficient and reliable, and they're easy to install. Better still, Fantech offers a choice of interior and exterior mounted fans. So there's a Fantech bathroom exhaust fan for every situation.
This kit is for single point exhaust.

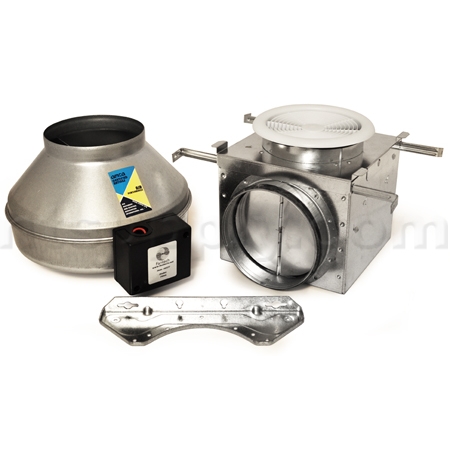

Includes:
* 190 CFM Bath Fan
* 6" Celing Grille
* Grille Housing with Damper
* (4) Hanger Bars
* Fan Mounting Bracket
The PB 190 includes all basic components- the only additional elements required to complete the installation are flexible 6" ductwork and roof or side vent
Grill housing: 8"L X 8"W X 7 1/4" H. Fits between 2x8 construction.
INSTALLATION TIPS
- Locate vent as close as possible bath fixtures (toilet, showers, and hot tubs
Fantech recommends the use of insulated flexible duct for the exhaust system - Place at least 8 feet of duct between intake grill and fan (insulated flexible duct allows sound from the fan to dissapate gradually so that it can not be heard in the bathroom)
Typical Attic Installation
BathroomFanExperts.com Price:
$152.31
Recommended Switches & Controls
|
Lighted Single Function Fan Control Switch - White
|
$18.99
|
|
Fantech Electronic Push Button Timer (FD 60EM)
|
$36.95
|
Recommended Ducting Accessories
|
6" X 25' Insulated Flex Duct
|
$30.34
|
|
Broan Model 634M Black Roof Cap for 6" Duct
|
$32.99
|
|
Broan Model 641 Wall Cap for 6" Duct
|
$34.95
|
|
Fantech HS6W Louvered Vent for 6" Duct
|
$15.99
|
Interior Grilles For Inline Fans
|
AIRTEC MXES Return/Exhaust Grille for 4/5/6" Duct - No Damper
|
$16.99
|
|
Fantech PBV6 Premium Grille for 6" Duct
|
$39.99
|
More Optional Accessories
|
Fan Cord Kit With Connector
|
$9.99
|
|
Designer Electronic Fan Timer - White
|
$42.75
|
Customers most agreed on the following attributes:
from Rochester Hills, MI on 3/10/2010Comments about Fantech PB190 Premium Bath Fan Kit - 190 CFM:
I wish I knew about these fans, along time ago. Easy installation, quiet, attractive ceiling grill looks like a recessed light fixture. The back draft enclosure, spring is not strong enough to close the flaps. I have an exterior flapper on the roof vent that prevents back drafts, may prevent the enclosure flaps from closing. I'm going to order (2) more to replace my current in-ceiling fans. Quiet, energy star rated, and easy installation. I will only install these in-line exhaust fans.
from Van Nuys, CA on 2/9/2010Comments about Fantech PB190 Premium Bath Fan Kit - 190 CFM:
This fan is unbelievable. It literally sucks the door closed on our enclosed toilet room. And with the door closed you can feel the air rushing in under the door, air even gets sucked in through the light switch! Nothing escapes.
All that, and you can barely hear it, and then only when directly under the inlet vent. Super clean design. 6" duct, but the inlet is barely larger than that and very flush with ceiling.
It takes some crawling around in the attic to install it. But it is quite simple really. Wiring was a breeze.
Highly, highly recommended. We should have installed one in every bathroom!
[1 of 1 customers found this review helpful]
from Dana Point, CA on 10/10/2009Comments about Fantech PB190 Premium Bath Fan Kit - 190 CFM:
I mounted mine in the attic about 8 feet from the intake plenum, and I was surprised I could still hear it. One because just the movement of air but also could hear the motor unit. It was reasonably easy to install (other than crawling around in the attic is always a pain...hot and cramped). Connecting the insulated 6" flex duct was the toughest part. The plenum is a bit flimsy and I would think they could come up with a better design to hang it. But it works OK. In general I'd recommend it. Time will tell about durability, but it looks bullet-proof.
[1 of 1 customers found this review helpful]
from Sutherlin, OR on 5/10/2009Comments about Fantech PB190 Premium Bath Fan Kit - 190 CFM:
I'm a retired HVAC contractor and I discovered fantech fans along time ago. We have used them on our contract jobs for years. I also installed them in my properties as well as my children's homes.
[1 of 1 customers found this review helpful]
from U.S.R., NJ on 8/12/2008Comments about Fantech PB190 Premium Bath Fan Kit - 190 CFM:
This fan is quite and powerful
