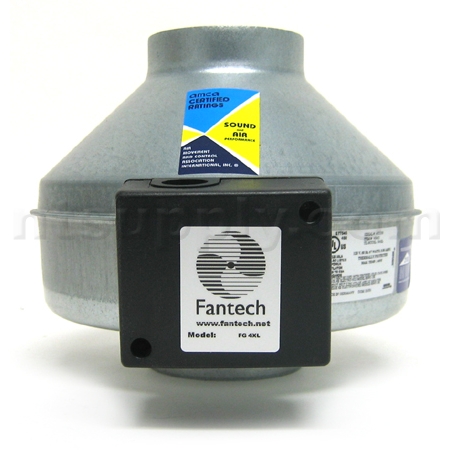

Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM
About This Bathroom Fan
| MFG: | Fantech |
| MFG#: | FG4 |
| Our#: | 137119 |
| CFM: | 110 CFM |
| Duct Diameter: | 4" |
| Grille Dimensions: | n/a |
| Mounting Opening: | n/a |
| Amp Draw: | 0.19 Amps |
| 1 Function: | Fan |
CFM at 0" WC - 135
CFM at .2" WC - 110
Amps - .19
Watts - 20
The company that invented the circular duct fan more than thirty years ago, now introduces new improved inline fans that are virtually airtight. New production processes eliminate manufacturing variances to ensure tight tolerances for optimal performance of every fan. Galvanized steel housings meet code requirements for both residential and commercial applications. High quality ebm-papst motors ensure long life and dependable performance.
Simplified Installation:
The FG Series features new longer duct connections for easier installation. Fans are prewired and include bracket for mounting to wall or ceiling.
Straight-through airflow allows fans to be installed at any angle at any point along the ductwork.
FEATURES:
- Airtight galvanized steel housing - perfect for commercial code applications
- Powered by ebm-papst external rotor motorized impeller for excellent heat dissipation, even at low RPM
- True airfoil backward curved impeller
- Permanently lubricated sealed ball bearings for maintenance free operation
- Automatic reset thermal overload protection
- 100% speed controllable
- Rated for airstream temperatures up to 140° F
- Five-year factory warranty
- UL Listed; CSA Certified

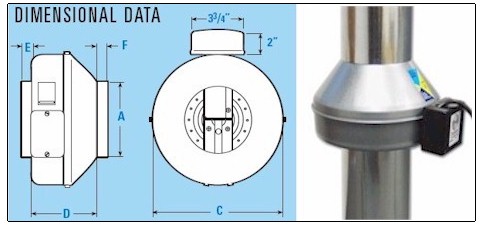

A= 4"
C= 8 3/4"
D= 6 1/2"
E= 1"
F= 1"
BathroomFanExperts.com Price:
$114.50
Recommended Switches & Controls
|
Lighted Single Function Fan Control Switch - White
|
$18.99
|
|
Fantech Electronic Push Button Timer (FD 60EM)
|
$36.95
|
Recommended Ducting Accessories
|
4" X 25' Insulated Flex Duct
|
$23.75
|
|
Broan Model RVK1A Roof Ducting Kit for 4" Duct
|
$36.95
|
|
Broan Model WVK2A Wall Ducting Kit for 4" Duct
|
$18.99
|
|
Round Undereve / Soffit Bath Fan Vent
|
$12.50
|
Interior Grilles For Inline Fans
|
AIRTEC MXES Return/Exhaust Grille for 4/5/6" Duct - No Damper
|
$16.99
|
|
Fantech PBV4 Premium Grille for 4" Duct
|
$33.85
|
More Optional Accessories
Customers most agreed on the following attributes:
from Atlanta,Ga on 6/15/2010Comments about Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM:
Works great at removing steam. So quiet we had to put it on a timer. Be sure to get the correct timer. The first one we got was for lights not this powerful beast.
from michigan on 3/21/2010Comments about Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM:
replaced box ceiling fan
from Shutesbury, MA on 2/25/2010Comments about Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM:
Nice fan, solid and well designed. I am using to move warm air from behind my wood stove into the basement. Also using the speed controller. It actually works! Using 4" ducting and some air flow noise associated with the intake and discharge.
6" ducting would be better!
from Denver, CO on 11/9/2009Comments about Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM:
Got sick of noise from bathroom fan, so I removed the fan and hooked this fan to the duct and wired to the existing power switch. Now the only noise is the air movement into the duct due to the airflow volume.
Comments about Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM:
Great fan. Its quiet. Even though that it does not come with a power cord. The mounting bracket is easy to install.
from MA on 5/3/2008Comments about Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM:
This a good little fan runs quite and uses little power.
from Albuquerque, NM on 4/21/2008Comments about Fantech FG4 Inline Centrifugal Fan - Galvanized Steel - 110 CFM:
Comes complete with installation bracket. I used my inline 135 cfm fan to exhaust a small bathroom and a small walk-in closet.
