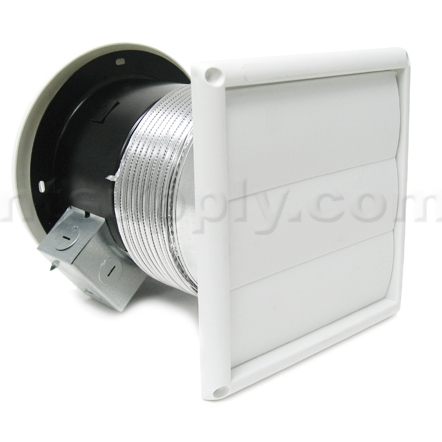

Broan Model 512M Through-The-Wall Fan
About This Bathroom Fan
| MFG: | Broan-Nutone |
| MFG#: | 512M |
| Our#: | 172635 |
| CFM: | 70 CFM |
| Duct Diameter: | N/A |
| Sones (Loudness): | 3.5 |
| Grille Dimensions: | 8" Dia. |
| Mounting Opening: | n/a |
| Amp Draw: | 0.7 Amps |
| 1 Function: | Fan, Ventilator |
Broan Model 512M Through-The-Wall Fan
Eliminate humidity from laundry rooms, tobacco smoke from rec rooms and workshops, or cooking fumes from kitchens with Broan's high-efficiency utility ventilators.This fan can be installed in outside walls from 5-1/4" to 10" thick. Walls less than 6" thick will not use the adjustable duct. Choose a location with no obstructions, such as wall studs, plumbing or electrical wiring.
FEATURES:
. 70 CFM 3.5 Sones.
. Easy exterior wall installation.
. Features a white interior grille and louvered exterior wall cap with built-in bird screen.
. 6" diameter flexible aluminum duct included.
. Accommodates walls from 5-1/4" to 10".
. Ventilates rooms up to 65 square feet.
FEATURES:
INTERIOR GRILLE:
. White polymeric - complements any decor
. Spin-on installation
MOTOR:
. Plug-in, thermally protected, permanently lubricated
. Quiet, durable polymeric blade
. Motor assy. features fast, easy "twist-lock" installation
. .7 Amps
HOUSING:
. Steel housing finished with electrically-bonded epoxy paint
. Can be installed in outside walls from 5¼" to 10" thick (walls less than 6" thick will not use the 6" dia. flexible duct)
EXTERIOR WALL CAP:
. Louvered white polymeric material
. Intergral birdscreen
. 6" dia. flexible ducting included
BathroomFanExperts.com Price:
$48.95
Recommended Switches & Controls
|
Lighted Single Function Fan Control Switch - White
|
$18.99
|
|
Fantech Electronic Push Button Timer (FD 60EM)
|
$36.95
|
More Optional Accessories
|
Designer Electronic Fan Timer - White
|
$42.75
|
|
Mechanical Crank Timer - White (97030-W)
|
$24.60
|
Customers most agreed on the following attributes:
from Terre Haute, Indiana on 7/30/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
We installed this fan to exhaust accumulated heat in an upstairs laundry room. It works wonderfully and looks nice, too.
from UP on 7/27/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
For a novice installer the installation instructions can be misleading. You have to build a box in the wall cavity to mount the fan, the instruction diagram indicates the fan can be mounted to drywall which is not recommended.
from Barnegat N.j. on 5/31/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
[...]fan was nice and compact for bath with limited wall space. except for the rather flimsey metal flange,and extention hose( I did not need to use the extention hose.)The install was fairly easy. Good instructions.I would recommend this unit for a small room.Noise level is tolerable,and it keeps my mirrors from fogging. Good product.
from Charlotte NC on 5/19/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
I was worried if this fan had the push to go through the wall turn a 90 degree bend and then push air 6 more feet to the outside. Well it does. It performs very well. A bit loud but it does a great job in our bathroom.
from Pearland, Texas on 5/14/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
Need better way to attach flex duct
from Washington, DC on 5/7/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
It's not the quietest fan out there, but it's powerful and quick. It's also a nice design.
from Reading, PA on 4/1/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
great for venting a smelly room
from Louisville, KY on 2/10/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
Installed in both a kitchen and bathroom where none existed before. Fairly easy to install, but I had to drill and chisel thru exterior brick. Instructions need addressing; 6in hole called for not big enough to get flex pipe through, need 6 1/2inches. Flex pipe not pkgd well, came crumpled and needed straightening.
from Decatur, Ga on 1/18/2010Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
I've used this model a couple of times. It's an easy install and is quiet enough to keep the client happy.
If venting through brick you may wish you had a 6" coring hole saw.
from Taylor, MI on 12/8/2009Comments about Broan-Nutone Broan Model 512M Through-The-Wall Fan:
[...]works great.Looks good too. After hole was cut in the wall, Brent installed it in 5-10 minutes. When I smoke I just flip the wall switch, works great.
